TY-3 touchscreen 2kg 3kg coffee roaster manual automatic coffee beans roaster

TY-3 touchscreen 2kg 3kg coffee roaster manual automatic coffee beans roaster

Control type: OMRON PLC

Batch capacity: 1-3.5kg

Heating type: LPG gas/natural gas/Electric

Drum: carbon steel alloy, similar cast iron

Description

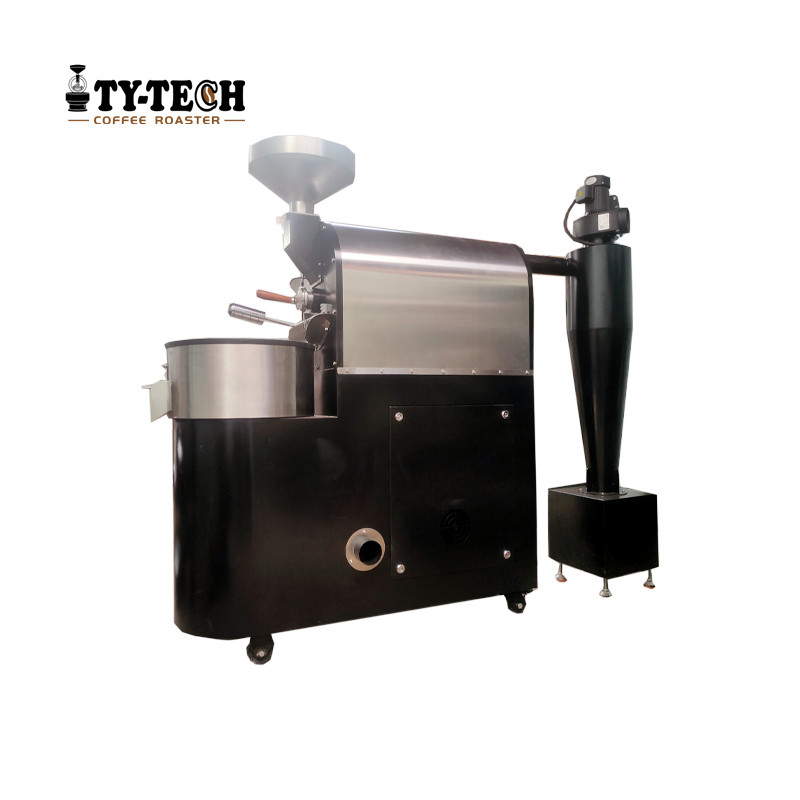

TY-TECH TY-3kg coffee roaster manual or automatic 3kilos per batch coffee beans roaster for sale

The TY-3KG can roast 200-3500g of green beans per batch, with a roasting time of 10-12 minutes. It can be powered by electricity, LPG gas, or Natural gas. its perfect height is suitable to stand directly on ground, it’s control panel height is suitable for standing operation. The TY-3KG coffee bean roaster is a reliable and efficient coffee roaster that can meet the needs of small to medium-sized roasters.

Product Features

Standard Features

√ Professional commercial use Drum coffee roaster, with cooling tray and exhaust system

√ World leading Hot air and Direct fire heating method

√ Precisely BT ET temperatures display(with top brand PT-100 thermocouple)

√ Drum rotate speed&&Heating adjustable,Digital stepless Hot air flow adjusting

√ 100% Electric/LPG or Natural gas heating types

√ USB connect to Artisan software

TY-TECH Coffee Roaster Advanced Feature

1. Control panel

Japan Top brand OMRON Brand touchscreen

The TY-3 use PLC touch screen panel , just like using a smartphone, the operator can clearly see the ongoing operation, this makes our roaster very easy to use.

2. Drum material

TY-3 apply carbon steel material drum(which others also called cast steel),

This material has properties that are very similar to cast iron, but its production process is simpler than cast iron, with good insulation and lower thermal expansion and contraction coefficients than stainless steel, making it less prone to deformation. This is the optimal material.

3. Heating elements

For gas heating type roaster, here are LPG gas or natural gas options. The professional top-brand Atmospheric gas furnace has low emission and higher heating efficiency. the gas consumption is very small.

For electric heating type roaster, we apply CE certificated heating tubes(stainless steel tube), which is higher efficient and heating fastly, and we also provide one more as spare part.

4. Integrated structure

Our roaster machine's smoke exhaust or cooling systems are highly integrated, or connected through hard pipes, so the machine nearly no needs to be installed. It can start roasting with just a few screws, which is very convenient for maintenance and cleaning.

5.Double roasting curves modes

Our roaster can connect to Artisan by USB.

And we have own roasting profile interface on the touch screen, even not connect to Artisan, you can mark important roasting steps with time and BT temperature(charge->dry end->FC start->FC END->SC start->SC end->drop)

6. Manual control type or automatic control type optional

7. Special designs

One-step warmup roaster function

Automatic stop heating function at maximum temperature(safety protection)

8. Additional services

For our distribution agent, we can provide logo service freely, it’s easy to promote in local market.

We provide customized services, such as machine color, material, or roaster appearance.

We provide 2-year warranty, this is much longer than other company. and Agents don't have to worry about inventory and quality issue. And we have own factory and technical team, so we promise to provide whole-life technical services.

Auxiliary parts included

√ ET BT temperature data logger to Artisan software. (you can connect the roaster to your computer for reacording and monitoring the roasting profile)

√ Chaff cyclone collector with fan. (for collecting the coffee beans silver skin/chaff and duct when roasting)

√ Foodgrade stainless steel cooling tray with power cooling fan and mixing motor (rapidly cooling coffee beans in 1-2minutes)

√ Gas tank pressure regulator for Gas type TY-2 roaster

√ One more pcs of heating tube for electric roaster as spare part

Options

1. Hot air pressure gauge

2. 110v-220v convertor/transformer

3. Free logo design service

4. Matched coffee grinder, coffee packing machine, coffee color sorter machine, coffee destoner, ESP smoke filter, professional afterburner, bags sealer,espresso coffee machines, etc.

Main specifications for TY-3kg coffee roaster
